Overview

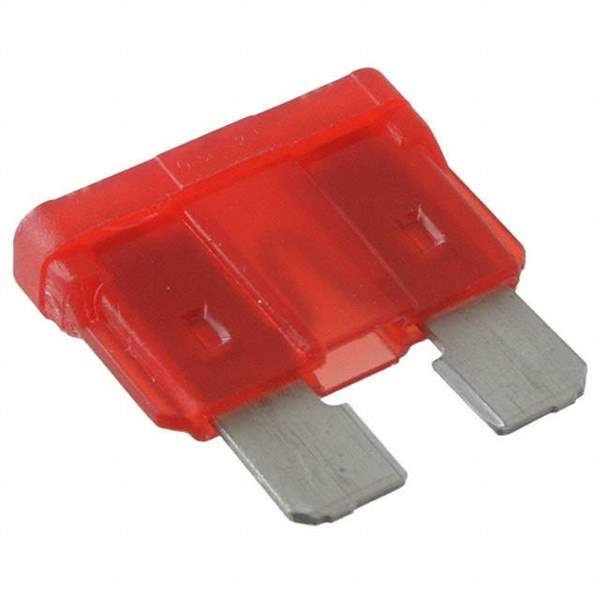

The 0287010.PXCN from Littelfuse Inc. is a board-mount circuit protection fuse, designed to open safely under overcurrent or fault conditions and thereby protect downstream circuitry, wiring, and power sources. As part of Littelfuse’s electronic fuse portfolio, this device is optimized for use on printed circuit boards in compact equipment where reliable overcurrent protection, fast fault clearing, and stable performance over time are required. Typical characteristics for this class of fuse include a defined current rating, voltage rating, and time-current behavior selected to match the inrush and steady-state load profile of the protected circuit. It is commonly used in low-voltage DC or AC rails in consumer, industrial, and automotive/transportation electronics, depending on the exact series specification. For detailed ratings such as current value, interrupting capacity, and time-delay type, designers should consult the official Littelfuse datasheet for 0287010.PXCN.

Applications

• Overcurrent protection on low-voltage DC rails in embedded control boards and microcontroller-based systems
• Primary or secondary side protection in AC/DC adapters, chargers, and small power supplies
• Protection of input power lines in communication equipment, networking devices, and set-top boxes
• Short-circuit and overload protection in industrial control modules, PLC I/O boards, and sensor hubs
• Protection of USB, auxiliary, or accessory power ports in consumer and commercial electronics
• General-purpose board-level overcurrent protection in instrumentation, medical peripherals, and test equipment

Alternatives & Replacement

When 0287010.PXCN is not available, or when a design update is required, alternative fuses from Littelfuse or other manufacturers can be considered. Selection should be based on matching current rating, voltage rating, time-delay/fast-acting behavior, interrupt rating, package/footprint, and safety approvals, as well as thermal and environmental conditions in the final application.

Recommended alternatives:

• Littelfuse Inc. 0297030.WXNV – may be used as a substitute in new designs where differences in current rating, package, or time-current profile can be accommodated. Board-level changes may be required. View details
• Bourns Inc. SF-0603F150-2 – resettable fuse/polyfuse option for designs that can accept polymer PTC behavior and any footprint differences. View details
• Bourns Inc. SF-0603F315-2 – similar concept as above, for circuits requiring a different hold/trip profile. View details
• Littelfuse Inc. 0467005.NRHF – alternative Littelfuse fuse series with different electrical and/or mechanical characteristics. View details
• Littelfuse Inc. 0466003.NRHF – similar family option that may be suitable after verifying ratings and footprint. View details
• Littelfuse Inc. 0466002.NRHF – alternative rating within the same general series for designs that can be recalibrated to a new fuse rating. View details

Engineering note: All listed alternatives are graded as “Redesign Required,” meaning package, footprint, and some electrical parameters may not be drop-in compatible. Before substituting, carefully compare the datasheets for current rating, voltage rating, time-current curve, interrupt rating, operating temperature, safety approvals, and the mechanical footprint/land pattern. Validate the replacement with bench testing under worst-case fault conditions to ensure safe operation and compliance with relevant standards.
