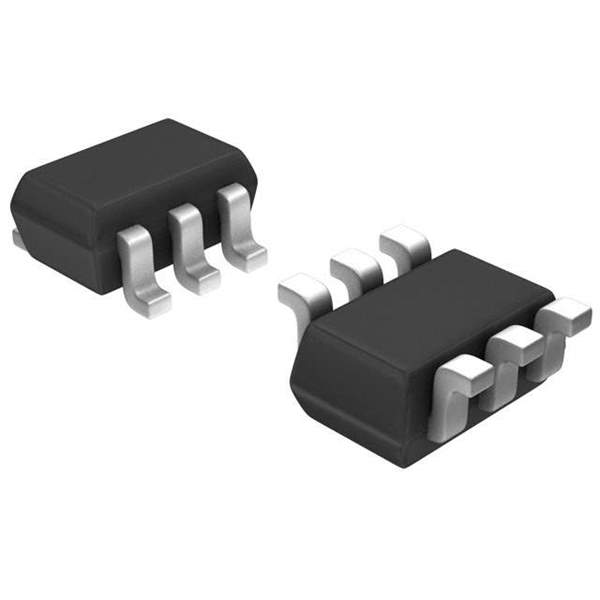

Product Overview: MMDT2222A-7-F

The MMDT2222A-7-F is a high-performance, dual NPN transistor manufactured by Diodes Incorporated, designed to deliver efficient amplification and switching capabilities in a compact package. This versatile bipolar junction transistor (BJT) is a perfect solution for a wide range of electronic applications, from simple amplification tasks to more complex circuit designs requiring high-speed switching.

Key Features

• Transistor Type: The MMDT2222A-7-F is a dual NPN transistor, which means it is composed of two NPN transistors within a single package, enabling designers to save space on PCBs.
• Voltage and Current Ratings: With a collector-emitter voltage (Vceo) of 40V and a collector current (Ic) of 600mA, this transistor can handle moderate power applications with ease.
• High Transition Frequency: The device boasts a high transition frequency (fT) of 300MHz, making it suitable for high-speed switching applications.
• Low Saturation Voltage: It features low collector-emitter saturation voltage, which minimizes power loss and improves efficiency during operation.
• Power Dissipation: The MMDT2222A-7-F can dissipate up to 225mW, allowing it to manage a fair amount of power for its small size.
• Package: Housed in a SOT-363 package, it is designed for surface mount technology, facilitating easy integration into modern PCB designs.

Applications

The MMDT2222A-7-F is suitable for a variety of applications, including:

• Signal amplification in audio and communication devices
• Driver stages in audio amplifiers
• Switching loads in power management circuits
• Digital logic circuits
• Portable and consumer electronics

Quality and Reliability

Diodes Incorporated is known for its commitment to quality, and the MMDT2222A-7-F is no exception. It is RoHS compliant, ensuring that it meets the latest environmental standards by avoiding the use of hazardous substances. The product also undergoes rigorous testing to ensure reliability and performance under various conditions.

In summary, the MMDT2222A-7-F from Diodes Incorporated is a reliable and versatile component that offers designers the flexibility and performance needed to create efficient and compact electronic solutions.
