The KBP206G is a single-phase bridge rectifier from Diodes Incorporated, renowned for its reliability and efficiency in converting alternating current (AC) to direct current (DC). This component is essential in various electronic applications, including power supplies, adapters, and battery charging systems.

Key Features

• High Current Capability: The KBP206G is capable of handling a high forward current of 2A, making it suitable for a wide range of applications that require a moderate power level.
• Peak Repetitive Reverse Voltage: With a peak repetitive reverse voltage (VRRM) of 600V, this bridge rectifier can withstand high voltage spikes, ensuring stable performance under various electrical conditions.
• Low Forward Voltage Drop: The low forward voltage drop reduces power loss and improves efficiency, which is crucial for energy-sensitive designs.
• High Surge Current Capability: The KBP206G can manage a surge overload rating of 60A, offering robust protection against short-term high current events.
• Wide Operating Temperature Range: It operates effectively over a temperature range of -55°C to +150°C, making it suitable for harsh environments.

Package and Mounting

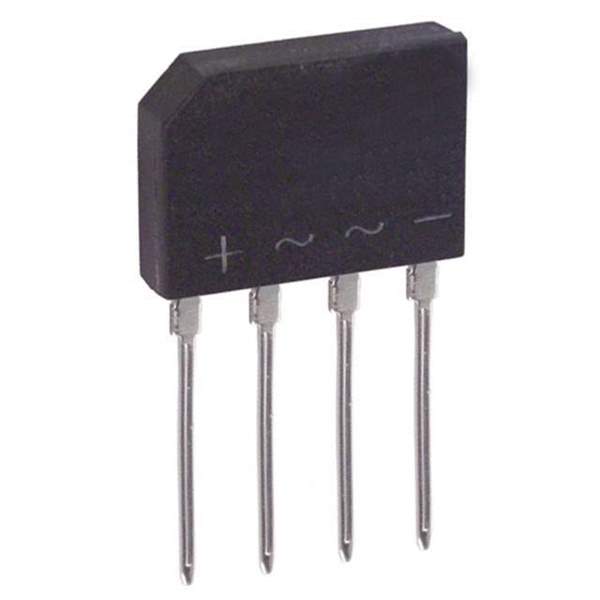

The KBP206G comes in a KBP package, which is a compact, square-shaped package with through-hole mounting. This form factor allows for easy integration into a variety of circuit boards and is well-suited for general-purpose use.

Applications

Due to its versatile nature, the KBP206G is used in a multitude of applications. It is commonly found in:

• Power Management Systems
• DC Power Equipment
• Telecommunication Devices
• Home Appliances
• Office Machines

Compliance and Certification

The KBP206G bridge rectifier is RoHS compliant, meaning it adheres to strict European Union standards that restrict the use of hazardous substances in electrical and electronic equipment. This compliance ensures that the product is environmentally friendly and safe for use in consumer electronics.

Conclusion

The KBP206G by Diodes Incorporated is a robust and reliable component for AC to DC conversion. Its high current capability, high voltage resistance, low power loss, surge current protection, and wide operating temperature range make it an ideal choice for designers looking for a dependable bridge rectifier for their electrical applications.
