Diodes Incorporated B540C-13-F Product Overview

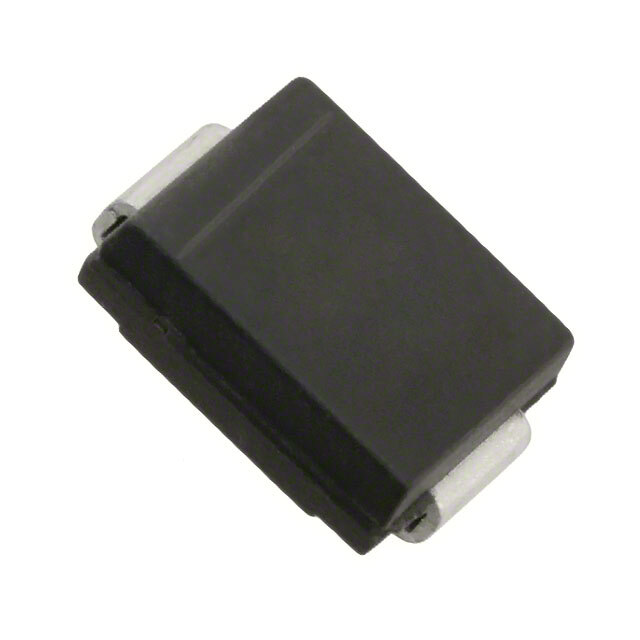

The B540C-13-F from Diodes Incorporated is a robust and efficient surface-mount Schottky barrier rectifier designed for high-frequency applications. This component is part of Diodes Incorporated's extensive range of diodes, known for their reliability and performance in a variety of electronic circuits. The B540C-13-F is packaged in the convenient and space-saving SMC (DO-214AB) package, which ensures ease of integration into a wide range of electronic devices.

Key Features

• Low Forward Voltage Drop: The B540C-13-F offers a low forward voltage drop, which enhances power efficiency by minimizing power loss during operation.
• High Current Capability: With a high forward surge current capability, this Schottky barrier rectifier can handle high levels of current without performance degradation.
• Thermal Performance: The device is designed to operate within a wide temperature range, ensuring reliability even under varying environmental conditions.
• Surface Mount Package: Its SMC package is ideal for automated assembly processes, allowing for efficient manufacturing and assembly of electronic products.

Applications

The B540C-13-F is versatile and can be used in a variety of applications, including:

• Power supply units
• DC-DC converters
• Automotive applications
• Freewheeling diodes
• Reverse battery protection
• High-frequency rectification in switch-mode power supplies

Specifications

The B540C-13-F has a maximum repetitive reverse voltage (VRRM) of 40V and a maximum average forward rectified current (IF(AV)) of 5A at TL (lead temperature) of 105°C. The device also features a maximum forward voltage drop (VF) of 0.55V at 5A, ensuring high efficiency in power conversion. Its peak forward surge current (IFSM) is 150A, providing robust performance during surge conditions.

Quality and Reliability

Diodes Incorporated is committed to delivering high-quality products. The B540C-13-F rectifier is manufactured with the highest standards, ensuring that it meets the stringent requirements of the electronics industry. Its reliability is further backed by compliance with RoHS standards, making it a suitable choice for environmentally sensitive applications.

Whether you're designing power management systems, automotive electronics, or portable devices, the B540C-13-F Schottky barrier rectifier is an excellent choice for efficient and reliable performance.
