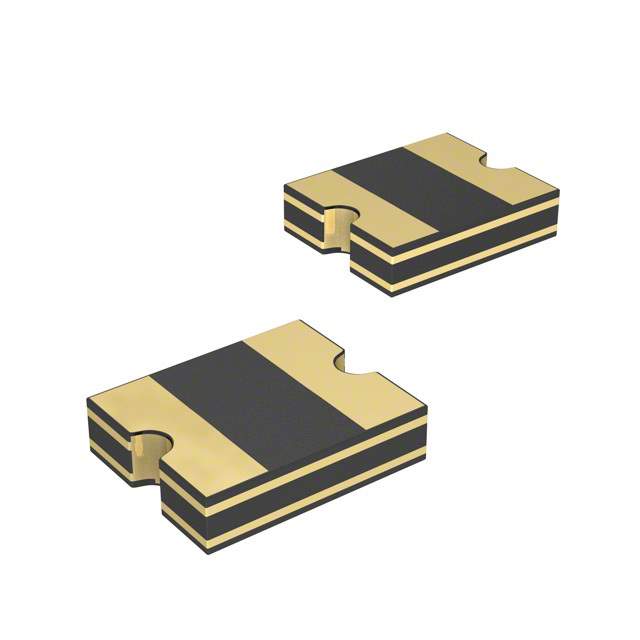

MF-USMF005-2

Parte No MF-USMF005-2
Produttore Bourns Inc.
Catalogo PTC Resettable Fuses
Descrizione PTC Resettable Fuse 0.05A(hold) 0.15A(trip) 30V 10A 0.6W 1.5s 2.8Ohm SMD Solder Pad 1210 T/R Automotive / FUSE RESETTABLE .05A 30V HLD SMD
Scheda tecnica
Campione
Stato RoHS rohs
Modelli ECAD
Serve Aiuto?

Specifiche prodotto Segnala problema?

Categorie Circuit Protection
Costruttore Bourns Inc.
Imballaggio Reel - TR
Stato Active
Tipo Polymeric
Tensione - Max 30V
Corrente - Max 10A
Corrente - Tenuta (Ih) (max) 50mA
Corrente - Intervento (It) 150mA
Tempo di intervento 1.5s
Resistenza - Iniziale (Ri) (min) 2.8 Ohm
Resistenza - Dopo l'intervento (R1) (max) 50 Ohm
Intervallo di temperatura - Esercizio -40°C to 85°C
Valutazioni AEC-Q200
Montaggio SMD (SMT)
Dimensione 0.127" L x 0.102" W (3.22mm x 2.58mm)
Spessore (max) 0.033" (0.85mm)
Approvazioni cURus, TUV
Condizione di conservazione Dry storage cabinet & Humidity protection package
Codice Articolo Win Source 003461-MF-USMF005-2
Parte di uso comune? Yes
Popolarità High
Rischio di contraffazione sul mercato aperto 35 pct.
Stato della domanda e dell'offerta Sufficient
Nome famiglia MF-USMF
Data di introduzione May 11, 2005
ECCN EAR99
Paese di origine China, Japan
Senza alogeni Compliant
Data EOL stimata 2026
Modello 3D Ultra Librarian Ultra Librarian MF-USMF005-2 Modello CAD

Descrizione

MF-USMF005-2 from Bourns Inc. is a PTC resettable fuse designed for circuits that need reusable overcurrent protection without the maintenance burden of replacing a one-time fuse after a fault event. Components in this category are commonly selected for portable electronics, battery-powered devices, interface ports, consumer products, and industrial control boards where designers want automatic recovery after overload conditions are removed. For engineers, the value of a resettable fuse lies in helping protect sensitive downstream circuitry while supporting compact, cost-aware designs. MF-USMF005-2 is typically considered in applications where board space, field reliability, and serviceability matter. The current lifecycle status for this part is information not available, so design teams should confirm ongoing production support directly with Bourns Inc. or authorized sources before locking it into new programs. RoHS compliance information is also not available in the provided data and should be verified against the latest manufacturer datasheet, declaration, or distributor compliance records.
