ADXL337BCPZ-RL7 - High Precision Accelerometer by Analog Devices Inc.

The ADXL337BCPZ-RL7 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned voltage outputs, all on a single monolithic IC. Manufactured by Analog Devices Inc., a leader in precision signal processing, this accelerometer is designed for a wide range of applications, from mobile devices to industrial equipment.

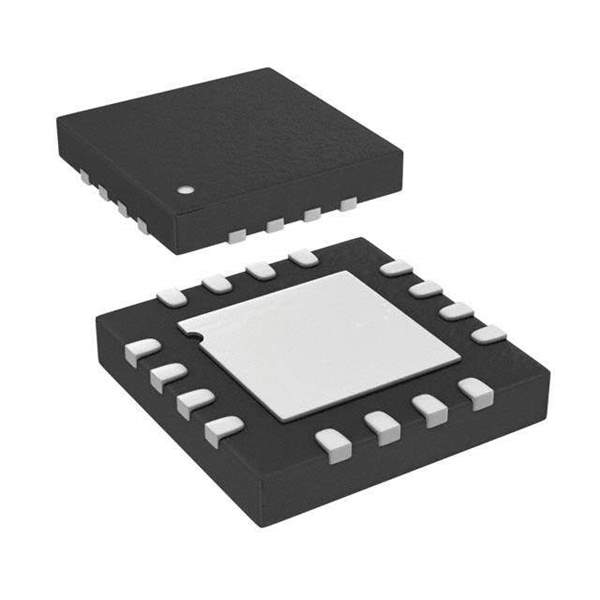

With its small footprint, the ADXL337BCPZ-RL7 comes in a 3mm x 3mm x 1.2mm, 16-lead, plastic lead frame chip scale package (LFCSP_LQ). This compact size makes it ideal for space-constrained applications, while its low power consumption allows for extended battery life in portable devices.

Key Features:

• Measurement Range: ±3 g (full-scale range), making it suitable for tracking motion or orientation in three dimensions.
• Voltage Output: Each axis has a corresponding analog voltage output, which can be easily interfaced with analog-to-digital converters (ADCs) or other signal processing components.
• High Sensitivity: Outputs are ratiometric, meaning the output sensitivity and zero g bias level scale with the supply voltage.
• Power Efficiency: Low power consumption with a typical supply current of just 300 µA, ideal for battery-powered applications.
• Wide Voltage Range: Can be powered by a supply voltage range of 1.8 V to 3.6 V, offering flexibility in system design.

Applications:

• Mobile and handheld devices
• Gaming and pointing devices
• Sports and health devices
• Industrial instrumentation
• Robotics and UAVs

The ADXL337BCPZ-RL7 is a robust accelerometer that provides precise measurements, making it an excellent choice for systems requiring reliable motion and tilt sensing. Its ease of integration, coupled with Analog Devices' reputation for high-quality signal processing solutions, ensures that you can trust this component to perform in the most demanding of applications.

For more detailed information, including operating temperatures, output format, and other technical specifications, designers are encouraged to consult the datasheet and user guides provided by Analog Devices Inc.
