Analog Devices Inc. AD8606ARZ Precision Amplifier

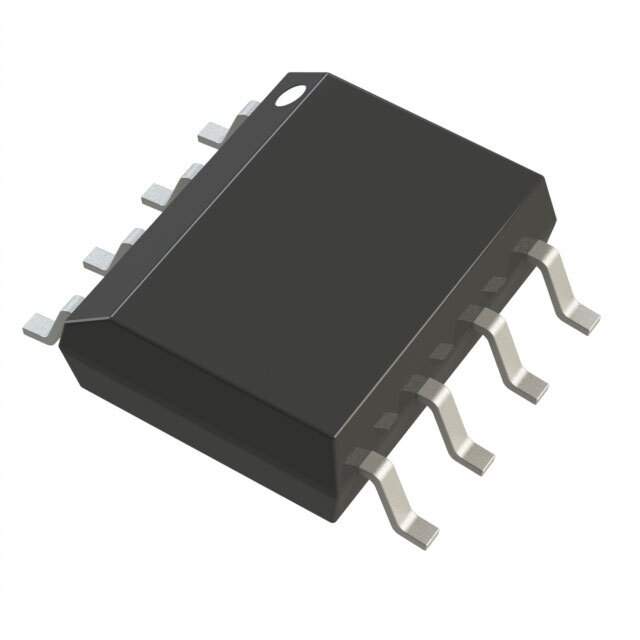

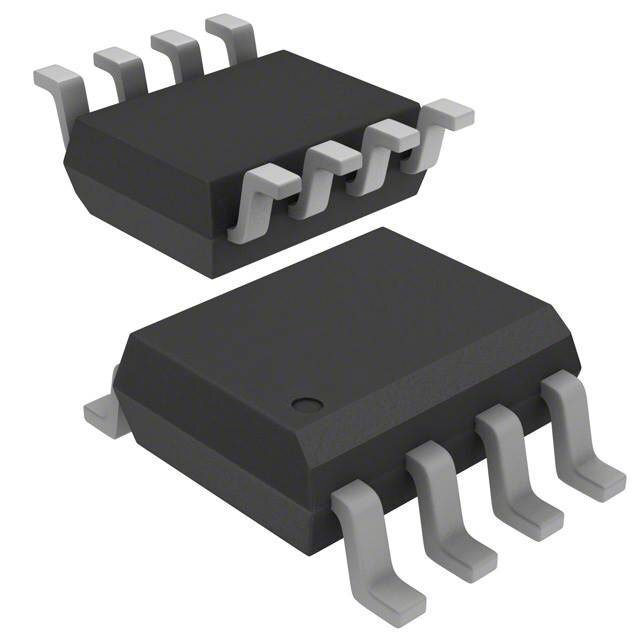

The AD8606ARZ from Analog Devices Inc. is a high-precision, low-noise, CMOS, rail-to-rail input/output operational amplifier. This dual amplifier is well-suited for a wide range of applications, including battery-powered devices, due to its low power consumption and wide supply voltage range. The operational amplifier is available in an 8-lead SOIC package, making it a compact choice for space-constrained applications.

Key Features of the AD8606ARZ:

• Rail-to-Rail Input and Output: The amplifier can handle input signals that extend to both supply rails and provides an output swing that extends to both rails, offering increased dynamic range in applications.
• Low Input Bias Current: The AD8606ARZ features a low input bias current, which makes it ideal for high-impedance sensor interfaces and precision applications.
• Low Offset Voltage: The device is characterized by a low offset voltage, which enhances the accuracy of the system by reducing the error in signal processing.
• Wide Supply Voltage Range: It operates from a single 2.7 V to 5.5 V supply or dual ±1.35 V to ±2.75 V, accommodating a variety of power supply configurations.
• Low Power Consumption: With low quiescent current, the AD8606ARZ is optimized for battery-powered and portable applications, ensuring minimal drain on power resources.
• High Output Current Drive: Despite its low power consumption, the amplifier can drive significant load currents, allowing it to power a wider range of components.
• Excellent Temperature Stability: The operational amplifier maintains its performance over a wide temperature range, making it reliable in varying environmental conditions.

Applications:

The AD8606ARZ is versatile and can be used in numerous applications, including but not limited to:

• Portable and battery-powered devices
• Medical devices such as ECG and EEG monitors
• Data acquisition systems
• Sensor interfaces
• Audio electronics
• Active filters
• Process control systems

With its precision performance and flexible operating characteristics, the AD8606ARZ from Analog Devices Inc. represents a robust solution for designers seeking a reliable and efficient operational amplifier for their next project.
