Product Overview: AD823ARZ-RL by Analog Devices Inc.

The AD823ARZ-RL is a high-performance, dual precision operational amplifier from Analog Devices Inc., renowned for its expertise in designing and manufacturing high-quality integrated circuits. This operational amplifier is part of their precision amp product line, which is designed to deliver exceptional accuracy and stability for a wide range of applications.

Key Features

• Wide Supply Range: The AD823ARZ-RL operates from a single supply range of 3 V to 36 V or dual supplies of ±1.5 V to ±18 V, making it versatile for various power environments.
• High Output Current: Capable of delivering a high output current, this op-amp can drive capacitive loads effectively, which is crucial for signal buffering and driving capabilities.
• Low Power Consumption: With low power consumption, the AD823ARZ-RL is an excellent choice for battery-powered devices and applications where power efficiency is a priority.
• High Speed: Featuring a high slew rate and fast settling time, the amplifier is suitable for high-speed signal processing tasks, ensuring quick response to changes in input signals.
• Low Noise: The low noise performance of the AD823ARZ-RL makes it ideal for audio applications and other sensitive instrumentation where signal integrity is critical.
• Rail-to-Rail Output: The rail-to-rail output swing increases the dynamic range, especially useful when working with limited supply voltages.

Applications

The AD823ARZ-RL is engineered to cater to a broad spectrum of applications. It is particularly well-suited for:

• Active filters
• Photodiode amplification
• Audio and video signal processing
• Battery-powered instruments
• Medical instrumentation
• Test and measurement equipment

Quality and Reliability

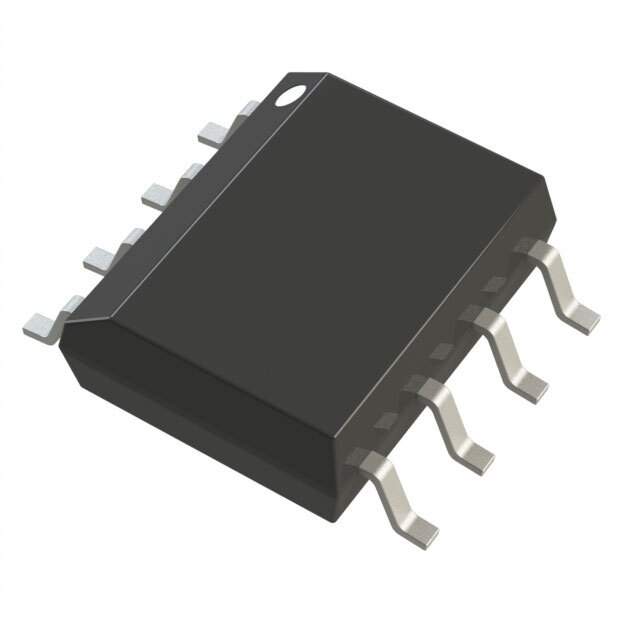

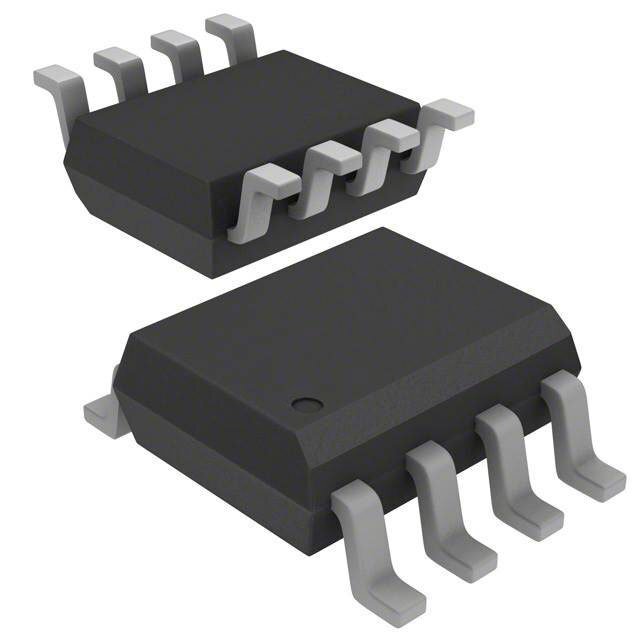

Analog Devices Inc. ensures that the AD823ARZ-RL meets the highest quality and reliability standards. The product is available in a robust 8-lead SOIC package, designated by the 'RZ' suffix, and the 'RL' denotes the reel packaging option, which is suitable for automated assembly processes.

With its combination of features, the AD823ARZ-RL operational amplifier is a top choice for designers who require precision, speed, and flexibility in their analog circuit designs. Whether it's for professional-grade audio equipment, sensitive medical devices, or any other application that demands high-performance signal amplification, the AD823ARZ-RL from Analog Devices Inc. stands out as a reliable and efficient solution.
