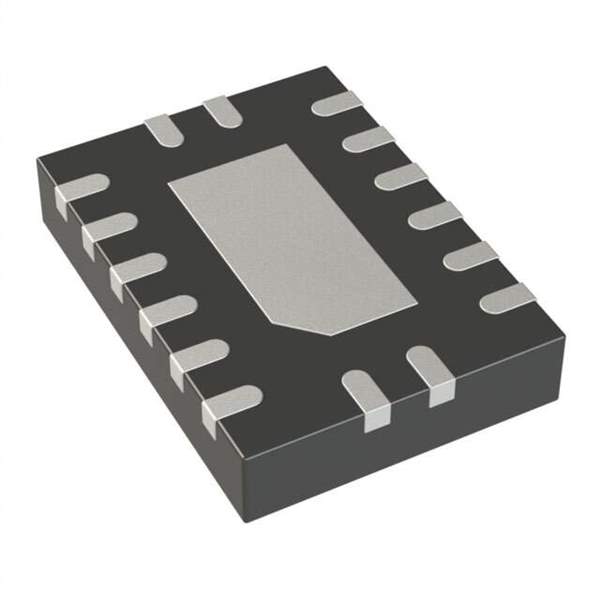

The TMUX1308QBQBRQ1 is a state-of-the-art, precision analog multiplexer from Texas Instruments, designed to cater to a broad spectrum of applications. This advanced switch IC is an ideal solution for systems that require multiple signal routing options, particularly in the automotive and industrial sectors.

Key Features

• Channel Configuration: The device features an 8:1 single-ended channel configuration, providing the flexibility to route eight different analog signals to a single output, optimizing board space and reducing system complexity.
• Low On-Resistance: With an ultra-low on-resistance (Ron) of typically 5 ohms, the TMUX1308QBQBRQ1 ensures minimal signal distortion and voltage drop across the switch, preserving signal integrity for precise measurements and control.
• Wide Operating Range: It operates over a wide supply range of 1.08 V to 5.5 V, making it compatible with various logic levels and allowing seamless integration into mixed-voltage systems.
• Extended Temperature Range: The device is designed to perform reliably in extreme conditions, with an operational temperature range of -40°C to +125°C, suitable for demanding automotive and industrial environments.

Applications

The TMUX1308QBQBRQ1 is versatile and can be used in multiple applications, including:

• Data Acquisition Systems (DAQ)
• Automotive Infotainment and Advanced Driver-Assistance Systems (ADAS)
• Industrial Process Controls
• Test and Measurement Equipment

Quality and Reliability

As a product designed for use in critical systems, the TMUX1308QBQBRQ1 meets stringent quality standards. It is AEC-Q100 qualified for automotive applications, ensuring robustness and reliability for on-the-road performance. Additionally, the device is manufactured by Texas Instruments, a leader in semiconductor solutions, which guarantees a high level of precision and quality in every unit.

Conclusion

In summary, the TMUX1308QBQBRQ1 from Texas Instruments is a high-performance, reliable multiplexer that offers designers the flexibility and efficiency needed for complex signal routing tasks. Its robust design, low on-resistance, and wide operating range make it an excellent choice for a variety of demanding applications.
