The TLC2274ACDR from Texas Instruments is a high-quality, precision operational amplifier that offers a blend of performance and versatility, making it an ideal choice for a wide range of applications. This advanced CMOS device features rail-to-rail output swing along with a slew rate of 3.6 V/µs, providing enhanced performance in signal conditioning, active filtering, and various other analog circuits.

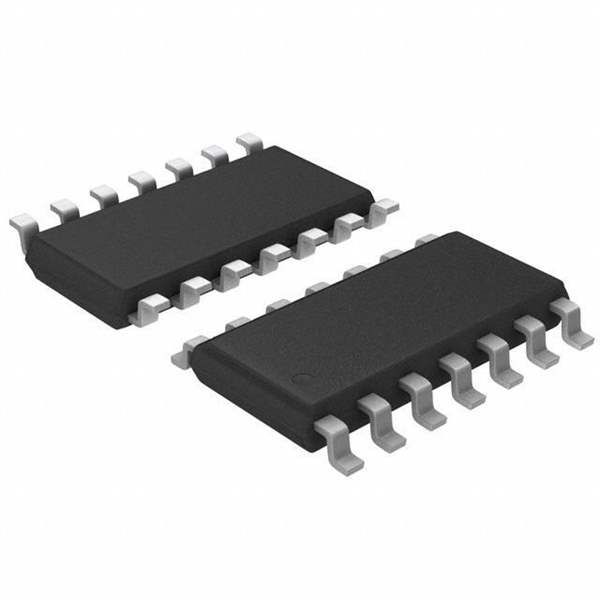

With a wide supply voltage range of 4.5 V to 16 V, the TLC2274ACDR is designed to operate in both single and dual supply configurations, providing design flexibility. Its quad configuration, encapsulated in a 14-pin SOIC package, allows for compact design layouts and reduces the need for multiple single or dual op-amps, thus saving space on PCBs.

The TLC2274ACDR boasts a low input bias current of 1 pA (typical), ensuring high accuracy in measurement and sensor applications. Additionally, its low noise density of 19 nV/√Hz at f = 1 kHz makes it suitable for audio and other precision amplification tasks. The device also features a wide bandwidth of 2.25 MHz, which allows it to handle a broad range of signals.

One of the key benefits of the TLC2274ACDR is its robust operation over a wide temperature range of -40°C to 125°C, which ensures reliable performance in harsh environments. The device also includes built-in ESD protection, safeguarding it against electrostatic discharges during handling or operation.

Engineered for stability and low distortion, the TLC2274ACDR is an excellent choice for designers seeking an op-amp with a balance of precision, power efficiency, and reliability. Whether it's for industrial control systems, medical instrumentation, or consumer electronics, the TLC2274ACDR from Texas Instruments stands out as a versatile component that can elevate the performance of your electronic designs.

Learn more about the TLC2274ACDR and discover how this precision amplifier can be integrated into your next project.
