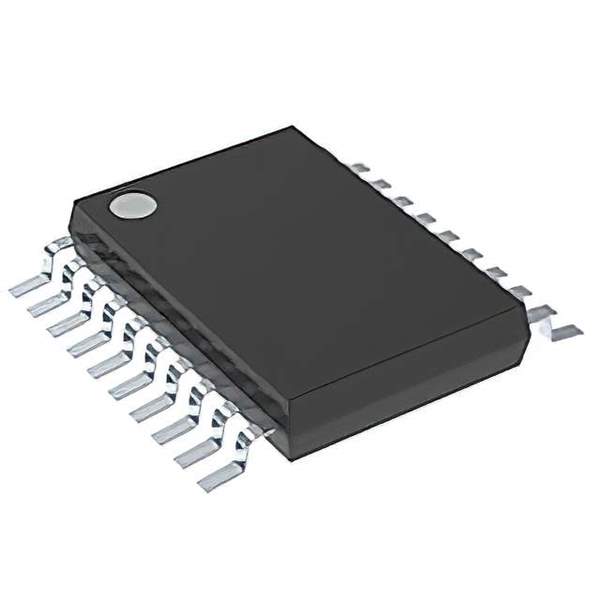

The SN74HCT244PW is a high-performance, octal buffer and line driver designed to provide current drive capability and buffering for bus-oriented systems. Manufactured by the renowned semiconductor company Texas Instruments, this integrated circuit is part of the 'HCT' family, which signifies compatibility with standard CMOS outputs and TTL input logic levels.

Key Features

• Logic Family: HCT Logic
• Number of Channels: 8
• Output Type: 3-State
• Supply Voltage Range: 4.5V to 5.5V
• Operating Temperature Range: -40°C to 85°C
• Package: TSSOP (Thin Shrink Small Outline Package)
• Pin Count: 20

Product Description

The SN74HCT244PW is tailored for high-capacity industrial and commercial applications that require a robust and reliable data bus interface. This device features eight non-inverting buffers with 3-state outputs, which can be used as either a buffer or a line driver. The 3-state outputs ensure that multiple outputs can be connected to a bus without causing contention.

The device operates over a broad voltage range of 4.5V to 5.5V, which allows for seamless integration into 5V systems. The SN74HCT244PW is characterized for operation from -40°C to 85°C, making it suitable for deployment in diverse environmental conditions.

Its TSSOP package makes it ideal for space-constrained applications, while the 20-pin configuration facilitates easy implementation into a variety of circuit designs. With its high drive capability, the SN74HCT244PW is especially useful in improving signal integrity for long bus lines in computing and telecommunication systems.

Applications

The SN74HCT244PW is versatile and can be employed in a multitude of applications, including:

• Bus Drivers
• Buffer Memory Address Registers
• Data Transmission Lines
• Control Systems
• Telecommunications

With its reliable performance and Texas Instruments' commitment to quality, the SN74HCT244PW is an excellent choice for designers looking to enhance their digital systems.
