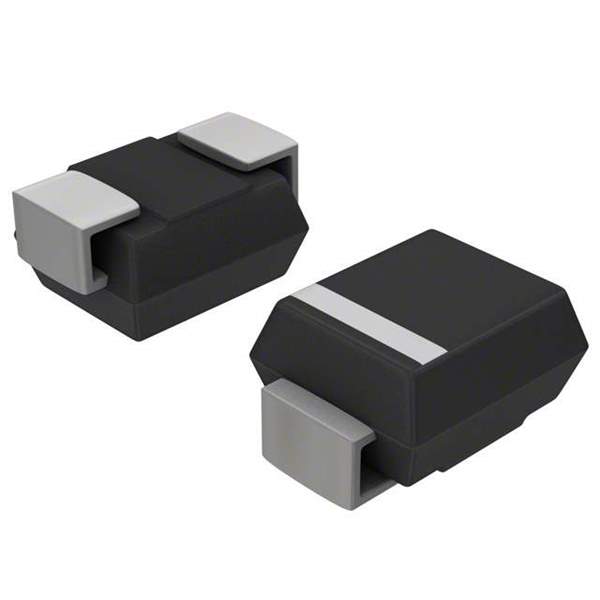

The STPS1L30A is a robust and efficient low drop power Schottky rectifier designed by STMicroelectronics, a global leader in semiconductor solutions. This rectifier is specifically engineered for applications requiring a high-efficiency power supply with minimal voltage drops. Its low forward voltage drop and high surge current capability make it an ideal choice for a wide range of applications, including switch-mode power supplies (SMPS), adapters, lighting systems, and reverse battery protection circuits.
Key Features
- Low Forward Voltage Drop: The STPS1L30A boasts a low forward voltage drop, which enhances the overall efficiency of the system by reducing power losses during conduction.
- High Surge Current Capability: This device can handle high surge currents, making it suitable for applications that experience transient overloads, thereby providing additional reliability and robustness.
- High Junction Temperature: With an operating junction temperature range from -40°C to 150°C, the STPS1L30A is designed to perform reliably even in extreme temperature conditions.
- Low Leakage Current: The low reverse leakage current of the STPS1L30A ensures minimal power loss when the diode is in the reverse-biased state, contributing to the overall energy-saving features of the rectifier.
- Avalanche Rated: This characteristic provides additional protection against sudden overvoltage, ensuring the longevity and durability of the device.
Applications
The STPS1L30A is versatile and can be used in a variety of applications. Some of the typical applications include:
- Power Management in Portable Devices
- DC-DC Converters
- Freewheeling Diodes
- Reverse Battery Protection
- Automotive Applications
Package and Availability
The STPS1L30A is available in various package options, including the DO-41 axial package, which is suitable for through-hole mounting, making it easy to integrate into a wide range of electronic circuits. The product is available through STMicroelectronics' distribution network, ensuring global availability and support.
For detailed specifications, application notes, and additional resources, customers are encouraged to visit the official STMicroelectronics website or contact their sales representatives.
