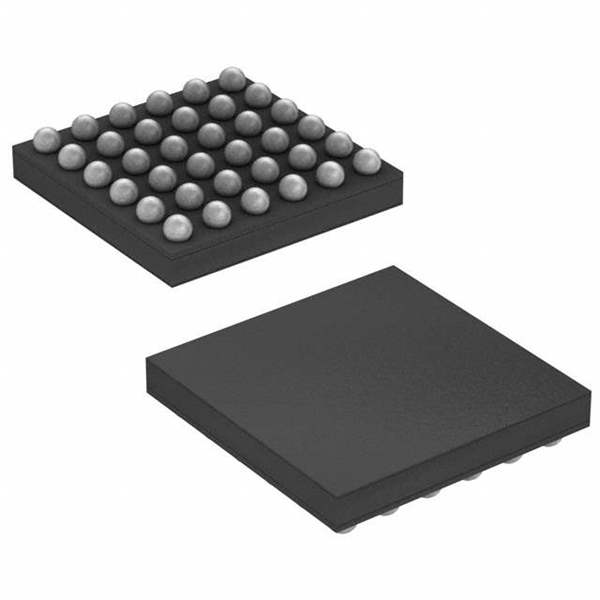

Maxim Integrated MAX86176ENX+T

The MAX86176ENX+T from Maxim Integrated is a state-of-the-art, low-power, integrated photoplethysmogram (PPG) and electrocardiogram (ECG) biosensor module designed for a wide range of healthcare and fitness applications. This advanced sensor is part of Maxim's commitment to providing innovative, high-performance integrated solutions for the medical and wellness sectors.

Key Features

• High-Performance PPG and ECG Monitoring: The MAX86176ENX+T offers simultaneous PPG and single-lead ECG measurements, allowing for comprehensive monitoring of cardiovascular health.
• Low Power Consumption: Designed with power efficiency in mind, this sensor is ideal for wearable devices where battery life is critical.
• High Sensitivity: The device's high sensitivity enables accurate detection of vital signs, even in challenging conditions.
• Compact Size: The small form factor of the MAX86176ENX+T makes it suitable for integration into a variety of portable devices without compromising on functionality.

Applications

The MAX86176ENX+T is versatile and can be employed in numerous applications, including:

• Fitness trackers and smartwatches
• Portable ECG monitors
• Wireless health patches
• Remote patient monitoring systems

Technical Specifications

The sensor module operates over a wide supply voltage range and features multiple internal LEDs for PPG measurements. It also includes an analog front-end (AFE) for ECG signal acquisition, making it a comprehensive solution for biosensing needs.

Quality and Reliability

Maxim Integrated is known for its commitment to quality, and the MAX86176ENX+T is no exception. It is built to meet the rigorous standards required for medical devices, ensuring reliability and performance.

Ordering Information

The MAX86176ENX+T is available in a tape and reel format, making it suitable for high-volume production environments. For pricing and availability, please contact Maxim Integrated or an authorized distributor.
