The MAX202ECSE+T from Maxim Integrated is a robust RS-232 transceiver IC designed to meet the communication needs for a variety of applications. This particular model is part of Maxim's MAX202E series, which are known for their reliability and performance in data transmission under challenging conditions.

The device operates from a single +5V power supply and features two drivers and two receivers. The MAX202ECSE+T conforms to the TIA/EIA-232-F standards and can transmit data at rates up to 120kbps. This makes it ideal for serial communication in industrial, commercial, and telecom systems where maintaining signal integrity over longer distances is crucial.

One of the key features of the MAX202ECSE+T is its integrated charge pump circuitry, which generates the necessary RS-232 voltage levels (+/-10V) from the single 5V supply. This eliminates the need for additional power supplies, simplifying the design and reducing the overall bill of materials.

The device is also equipped with a proprietary low-dropout transmitter output stage, delivering true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. This feature ensures reliable data transmission even with voltage variations, which is particularly beneficial in battery-powered devices where power levels can fluctuate.

For enhanced protection, the MAX202ECSE+T includes a 2kV ESD protection on transmitter outputs and receiver inputs, safeguarding the IC against electrostatic discharges that can occur during handling or operation. This level of protection is essential for applications in harsh environments where ESD events are more likely to occur.

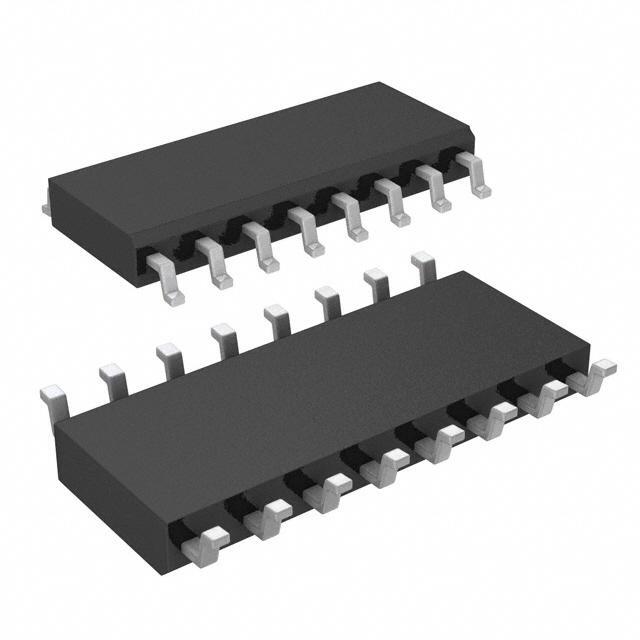

The IC is offered in a 16-pin narrow SO package, making it compact and suitable for space-constrained applications. The MAX202ECSE+T also supports a wide operating temperature range from 0°C to 70°C, ensuring reliable performance across various environmental conditions.

Whether it's for point-of-sale systems, peripherals, or network systems, the Maxim Integrated MAX202ECSE+T RS-232 Interface IC stands as a reliable solution for facilitating RS-232 communications in your electronic designs.
