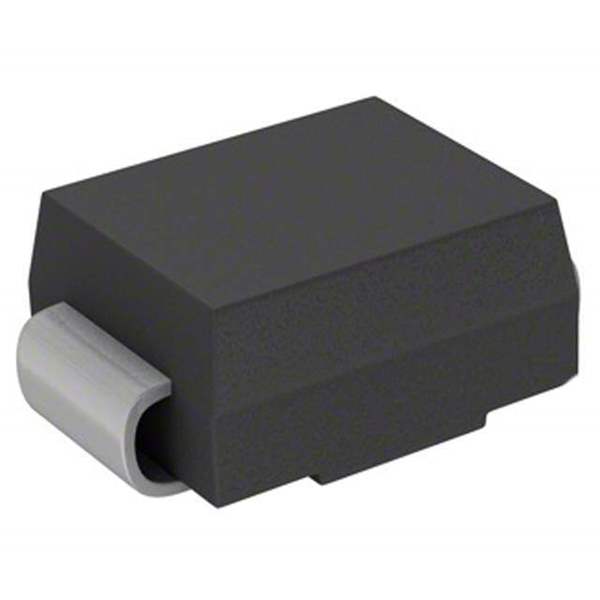

Product Overview: RS1MB-13-F from Diodes Incorporated

The RS1MB-13-F is a high-efficiency, surface-mount rectifier diode designed and manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete and analog semiconductor markets. This product is part of the RS1M series, which is well-known for its reliability and performance in a variety of applications.

Key Features

• High Forward Surge Capability: This rectifier is capable of handling high surge currents, making it suitable for applications that experience occasional overloads.
• Low Forward Voltage Drop: The RS1MB-13-F offers a low forward voltage drop, which enhances power efficiency and reduces thermal load on the system.
• High Reliability: With its robust construction, the RS1MB-13-F is designed for high reliability and a long operational lifespan.
• Surface Mount Package: It comes in an SMB package, which is ideal for automated assembly processes and helps in saving board space.
• Lead-Free Finish: The product has a lead-free finish, making it compliant with RoHS directives for environmental safety.

Applications

The RS1MB-13-F is suited for a variety of applications, including:

• Power supply units
• Automotive systems
• Consumer electronics
• Lighting systems
• Telecommunication devices

Electrical Characteristics

With a repetitive peak reverse voltage of 1000V and an average forward rectified current of 1.0A at TA = 75°C, the RS1MB-13-F is capable of meeting the requirements of most medium-power applications. Its peak forward surge current is 30A, which is suitable for handling high transient currents.

Quality and Compliance

Diodes Incorporated is committed to providing products that meet the highest standards of quality and compliance. The RS1MB-13-F is a testament to this commitment, with certifications and compliance with industry standards ensuring its suitability for a wide range of commercial and industrial applications.
